Brewing industry

Brewing industry CHP / Cogeneration

Combined heat and power (CHP) or cogeneration has significant potential in the brewery industry. Electricity and heat recovered from a gas engine can be deployed at high efficiency for useful onsite use. This gives the ability to reduce operational costs and reduce carbon emissions. Converting the heat into cooling via absorption chillers is called combined cooling heat and power (CCHP) or trigeneration and can be deployed to support the cooling requirements of the brewery.

Benefits of CHP for the brewery industry

  • Energy cost savings – Overall efficiencies (electrical and thermal) can reach 95 percent using a wide fuel range Resilient and robust power – You don’t have to rely on the grid alone to ensure your facility has the power it needs 24/7
  • Environmentally friendlier – Less fuel burned per MW generated at lower CO2
  • DLE technology can sustain lower emission levels while eliminating system water requirements
  • Standardised design – Smaller footprint, scalable to your unique spatial requirements
  • Flexible power – Thermal energy can be stored for use, electricity can be fed into the public grid or used for artificial lighting, and an optional full island lighting control system is available
  • Simplified maintenance – Fast replacement and on-site maintenance is critical for continued operation

Characteristics of the brewery industry

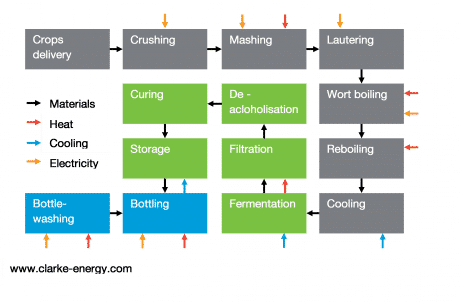

The brewing process comprises three major processing stages, namely the brew house (grey), storage and fermentation (green), and bottling (blue). The processing steps within these stages require energy, in the form of electricity, heat or cooling.

BreweryCHPFlowChart

CHP for breweries

The processing steps of wort boiling and bottle washing require more than half of the thermal energy needed in breweries. Electricity is used for refrigerating purposes in storage and fermentation. The figure below illustrates the energy demand, both electric and thermal, in breweries.

BreweryElectricityDemand

BreweryHeatingCoolingDemand

Since the temperatures of CHP thermal discharges range from 45°C to about 180°C (exhaust gas), large potential arises from low temperature heat consumers, such as bottle washing (90°C) and filtration. Two main criteria positively affect the efficiency of CHP facilities in breweries: A larger number of low temperature processes and a constant heat and/or cooling demand.

High energy renewable biogas can be created from by-products of beverage production and wastewater treatment. Instead of considering them waste, they can be converted into electricity and thermal energy to be used in your process, significantly cutting operating expenditures. CHP also reduces your electricity costs. Depending on your country‘s legislation, you can further benefit from governmental CHP funding.

Although not every brewery requires enough heat to operate a CHP facility for their production, CHP can also be financially beneficial for smaller companies such as craft breweries. Since many also offer hospitality, the combined thermal demand of brewery and guest rooms serves as heat sink of the CHP plant. Thereby, separate sources of thermal energy for production and domestic heating become obsolete.
