Trigeneration / CCHP
Trigeneration or combined cooling, heat and power (CCHP), is the process by which some of the heat produced by a cogeneration plant is used to generate chilled water for air conditioning or refrigeration. An absorption chiller is linked to the combined heat and power (CHP) to provide this functionality. Quadgeneration takes this process one step further with the addition of systems to purify carbon dioxide from the engine exhaust. Combined cooling and power (CCP) is where electricity and cooling are utilised alone.
Benefits of trigeneration
There are a number of benefits to trigeneration including:
- Onsite, high efficiency production of electricity and heat
- Reduced fuel and energy costs
- Lower electrical usage during peak summer demand
- Engine heat can be used to produce steam of hot water for onsite use
- Significant reductions in greenhouse gas emissions
- No harmful chemical pollutants since water is used as the refrigerant
- Beneficial for improving building's energy efficiency ratings such as Green Star and NABERS in Australia
Trigeneration systems supply energy in three forms:
- Chilled water
Absorption chillers provide an economical and environmental alternative to conventional refrigeration. Combining efficiency, low emission power generation equipment with absorption chillers allows for maximum total fuel efficiency, elimination of harmful refrigerants and reduced overall air emissions. There are a number of different configurations of CHP units where refrigeration can be derived. These include:
- Operation using hot water
- Operation using steam
- Direct heat via combustion
Compression-type refrigeration machines
- Direct drive power
- Electrical drive power

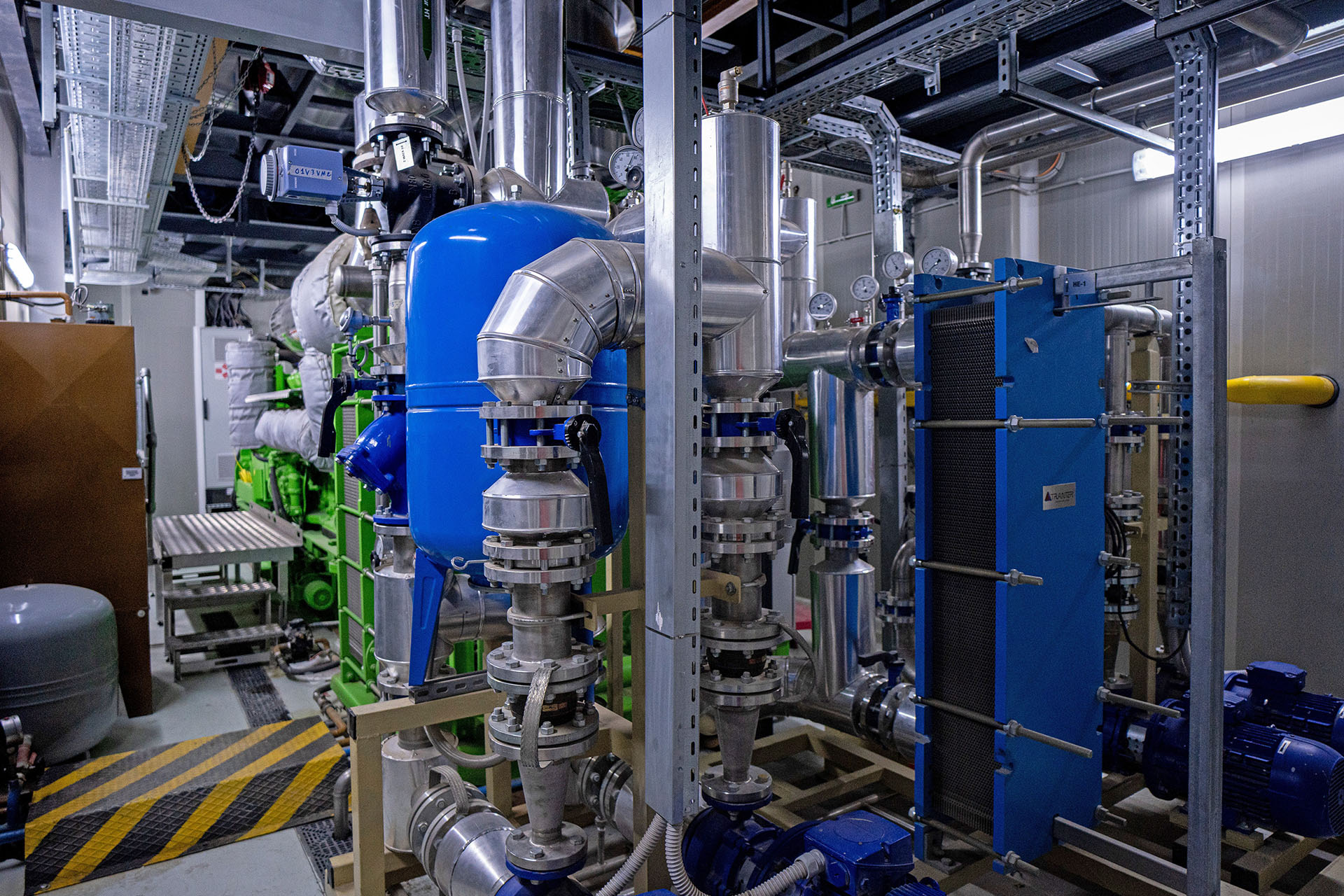

Combining a CHP or cogeneration plant with an absorption refrigeration system allows utilisation of seasonal excess heat for cooling. The hot water from the cooling circuit of the plant serves as drive energy for the absorption chiller. The hot exhaust gas from the gas engine can also be used as an energy source for steam generation, which can then be utilised as an energy source for a highly efficient, double-effect steam chiller. Up to 80% of the thermal output of the cogeneration plant is thereby converted to chilled water. In this way, the year round capacity utilisation and the overall efficiency of the cogeneration plant can be increased significantly.
Advantages Versus Conventional Refrigeration
Absorption based refrigeration technology offers the most established and economic solution for reduced emission, air conditioning systems.
- Operated with heat, utilising relatively inexpensive ‘excess energy’
- Production of electricity that can be fed into the power grid or used to cover the plant’s electricity requirements
- During cold seasons, the heat can be utilised to cover heat requirements
- Absorption chillers have no moving parts, there for there is no wear and maintenance costs are low.
- Absorption system has noiseless operation
- Low operating costs and lifecycle costs
- Using water as a refrigerant replaces the use of ozone damaging substances.
- Approximately 150-170 kW of cold output is required per 1,000m2 of office space
- The term tonnes of refrigeration (TR) is generally used as the unit of cold energy 1 TR (metric) = 3.86 kWh, 1 TR (US) 3.52kWh
- The term coefficient of performance (COP) is used for referring to the efficiency of an absorption chiller. For a hot water chiller, the COP lies between 0.6 - 0.8 and for a double-effect steam chiller between 1.2 - 1.3
- Cold water temperatures down to 4.5°C can be achieved with lithium bromide salt
- Temperatures down to -60°C can be achieved with ammonia

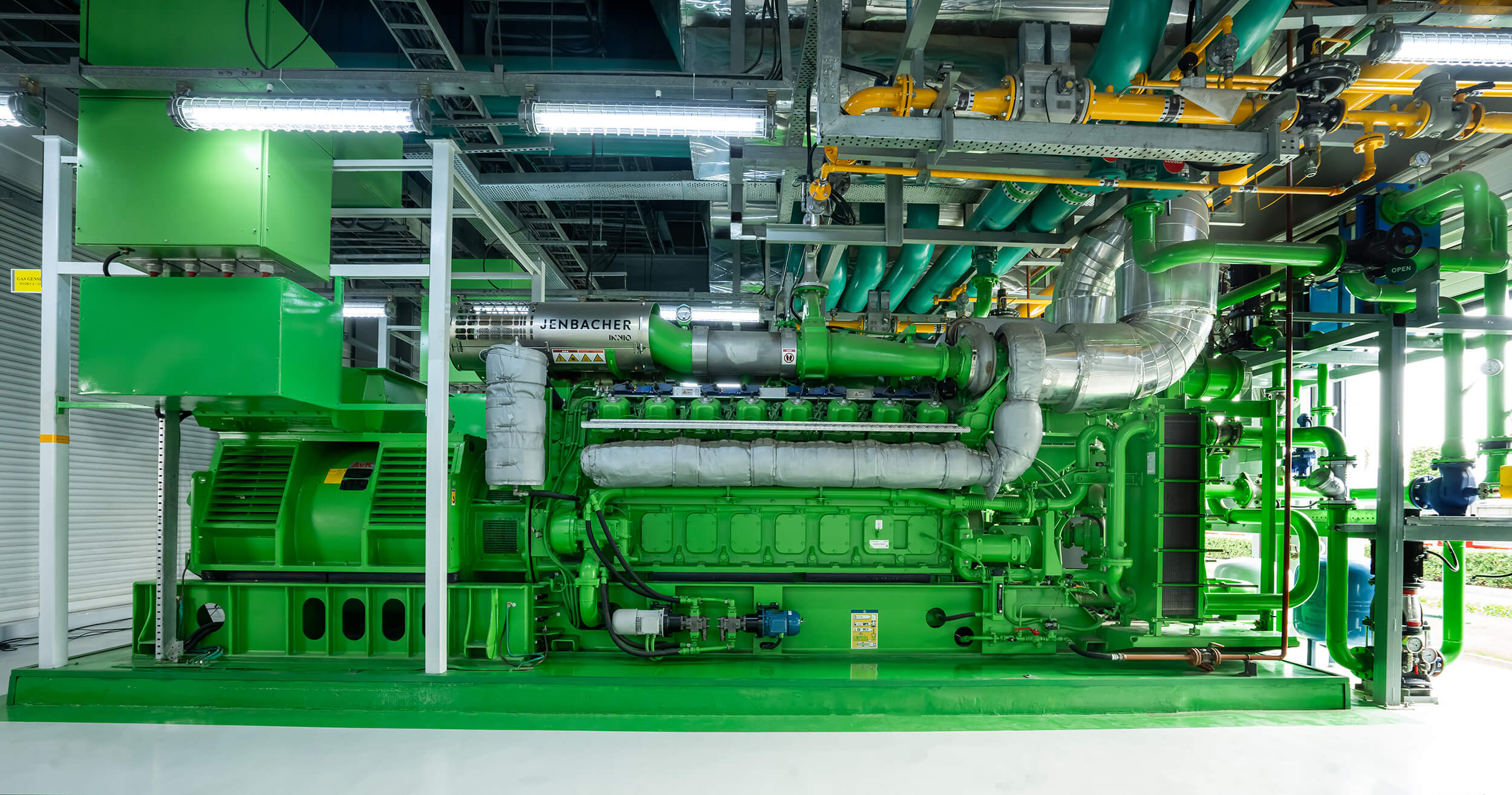

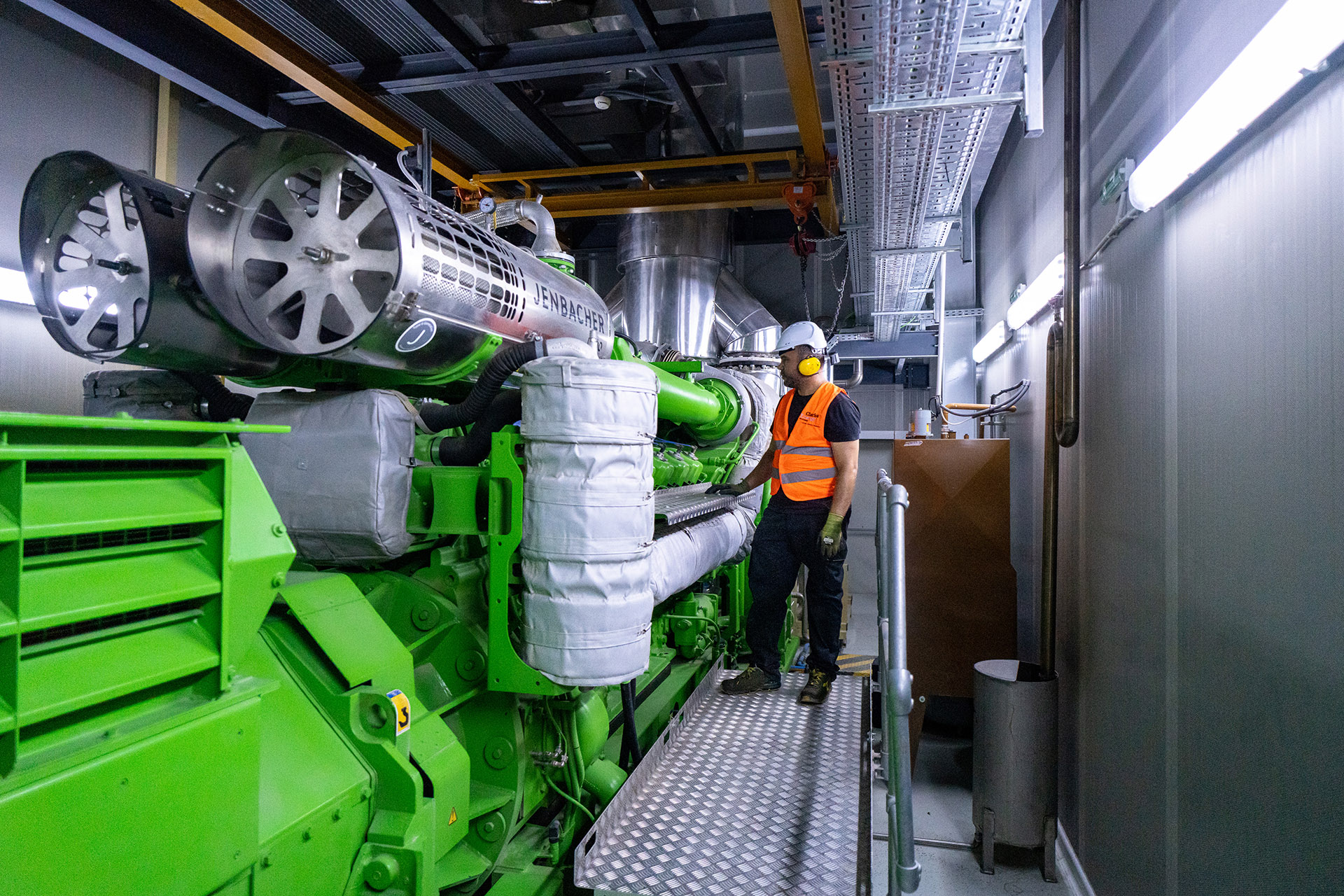

Across the world, there is a new emphasis on projects that combine climate protection and economical primary power generation. Absorption chiller technology represents an optimal solution for a year-round efficient source of cooling and heat, especially when used in conjunction with a gas engine cogeneration plant. More than 500 systems with GE's Jenbacher gas engines in combination with absorption chillers have been delivered worldwide.
